プロダクト細部
Place of Origin: Guangdong China
ブランド名: Shareway
証明: CE UL RoHS ISO9001:2008
Model Number: 744833052100
支払及び船積みの言葉
Minimum Order Quantity: 100pcs
価格: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product name: |
Through-hole Common Mode Choke for Frequency converter 744833052100 |
Usage: |
for Frequency converter |
Product type:: |
Common Mode Choke |
Operating temperature range: |
–40 ºC to +125 ºC |
Termination type: |
through-hole |
Package: |
Tape / Reel |
Product name: |
Through-hole Common Mode Choke for Frequency converter 744833052100 |
Usage: |
for Frequency converter |
Product type:: |
Common Mode Choke |
Operating temperature range: |
–40 ºC to +125 ºC |
Termination type: |
through-hole |
Package: |
Tape / Reel |
Through-hole Common Mode Choke for Frequency converter 744833052100
Characteristics:
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Number of windings | N | 3 | |||
| Inductance | L | 10 kHz/ 0.1 mA | 5.2 | mH | ±30% |
| DC Resistance | RDC | @ 20 °C | 27 | mΩ | max. |
| Rated Current | I R | @ 70 °C | 10 | A | max. |
| Rated Voltage | VR | 50 Hz | 500 | V (AC) | max. |
| Insulation Test Voltage | VT | 50 Hz/ 5 mA/ 2 sec. | 2500 | V (AC) |
Through-hole Common Mode Choke for Frequency converter 744833052100
Shape and Dimensions:

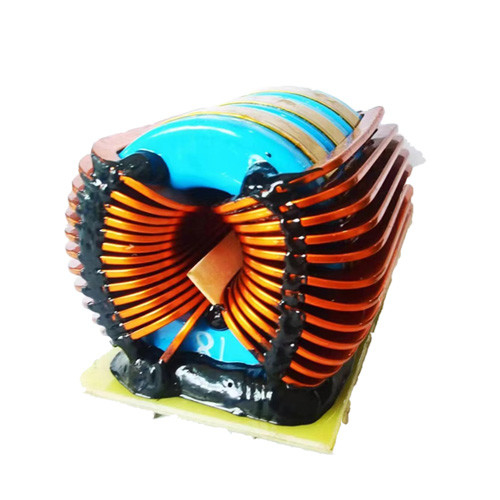

Product picture:
Through-hole Common Mode Choke for Frequency converter 744833052100
